CUBE VFD – Variable Frequency Drive Motor Controller

The CUBE VFD is an intelligent controller designed and manufactured by SUBCOE for the protection, control, monitoring, and data acquisition of Variable Frequency Drives (VFDs). Its features make it suitable for a wide range

SUBCOE CUBE VFD Intelligent Motor Controller

SUBCOE CUBE VFD Intelligent Motor Controller

of oil field and industrial applications such as Electric Submersible Pumps (ESPs), Horizontal Pumping Systems (HPS), Progressive Cavity Pumps (PCP) and Non-Optimized Reciprocating Pump Systems (RPC). There are two versions of the CUBE VFD Motor Controller, the first has fully independent AIO & DIO built in and the second the CUBE HMI uses the inputs & output of the VFD system, both systems are otherwise functionally identical.

The CUBE VFD provides real-time monitoring and logging of electrical parameters (current, voltage, frequency, power, DC bus voltage) and intelligent control of VFDs based on advanced logic. It integrates the Down Hole Tool (DHT) monitoring, Backspin & Ground Fault (BS & GF) protection, and multiple analog and digital inputs/outputs for alarms and shutdown functionality with continuous trending capability.

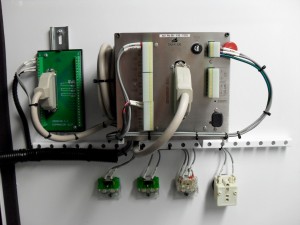

CUBE VFD Motor Controller Rear with Expansion Board

CUBE VFD Motor Controller Rear with Expansion Board

Alarms and trip set-points have flexible time and restart options. This allows the User to program The CUBE VFD for protection of various configurations and field conditions. In addition to monitoring and logging the electrical parameters of the protected VFD (& motor), The CUBE VFD also allows the user to program alarms and set points for external sensors monitored through the analog and digital inputs.

The communication features of The CUBE VFD includes: (1) front & rear USB ports, (2) a rear LAN port, (3) RS485 master & slave ports (Modbus® RTU compatible), (4) on-board 4×20 character transflective display screen with LED lights, and (5) intuitive full data entry keyboard for fast and accurate entry of data and programming set points.

The USB ports are multi-functional and can be used for downloading Logs and Trending files to a standard USB pen drive, for firmware updates, and for communication with external modules. Standard TCP/IP protocols are used for communication with PC devices.



Standard features of The CUBE VFD include:

  • 4-line 20 digits high clarity transflective display screen and 24-key keyboard,
  • On-board high intensity LED pilot lights for Auto start, Back spin, Alarm, On, and Off,
  • On-board control devices for AUTO, HAND, START, and STOP,
  • Zoom button to increase/decrease size of display digits,
  • 100ms response time,
  • Reverse Rotation & Ground Fault monitoring (optional feature),
  • DHT protection (when DHT package is installed & DHT License code is purchased),
  • 16 Digital inputs (located on the expansion slot) and 5 Digital outputs,
  • 4 Analog inputs (software configurable for either 0–10V or 4–20mA),
  • 2 Analog outputs (4–20mA),
  • 2 RS485, 2 USB, and a LAN communication port,
  • Modbus® RTU and Modbus® ASCII master/slave,
  • Time stamped Data and Alarm log,
  • Time stamped Trending with 16 independent channels and User selectable sample rate,
  • Standard on-board 256 MB memory with optional memory of up to 8GB,
  • Data Log and Trend download via USB memory drive or by LAN connection,
  • TCP/IP ready.
